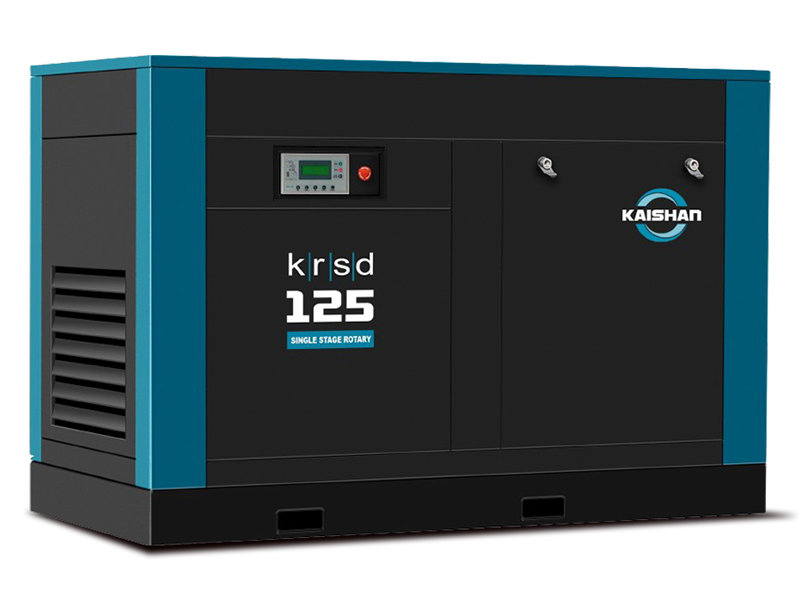

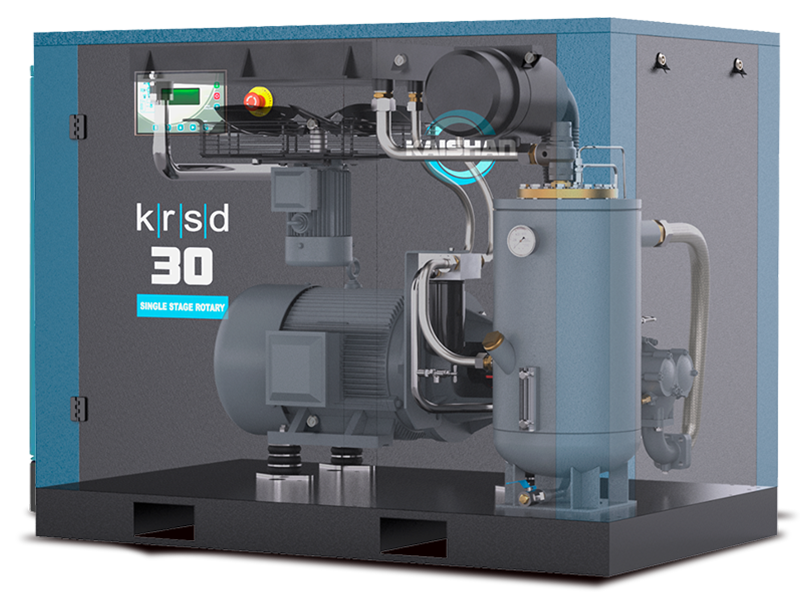

Compressed air is often referred to as the ‘fourth utility’ and is critical to most manufacturing operations. Facility performance depends upon compressor reliability and efficiency. Power consumption is a significant cost throughout the life cycle of a compressor. Therefore, it is important to consider the life cycle cost of a compressed air system when evaluating productivity improvements. KRSD series advanced energy saving features reduce operation costs significantly. Simple package design requires only minimum maintenance for optimum performance. Continuous cooling and circulation of lubricating oil ensures long airend operating life.

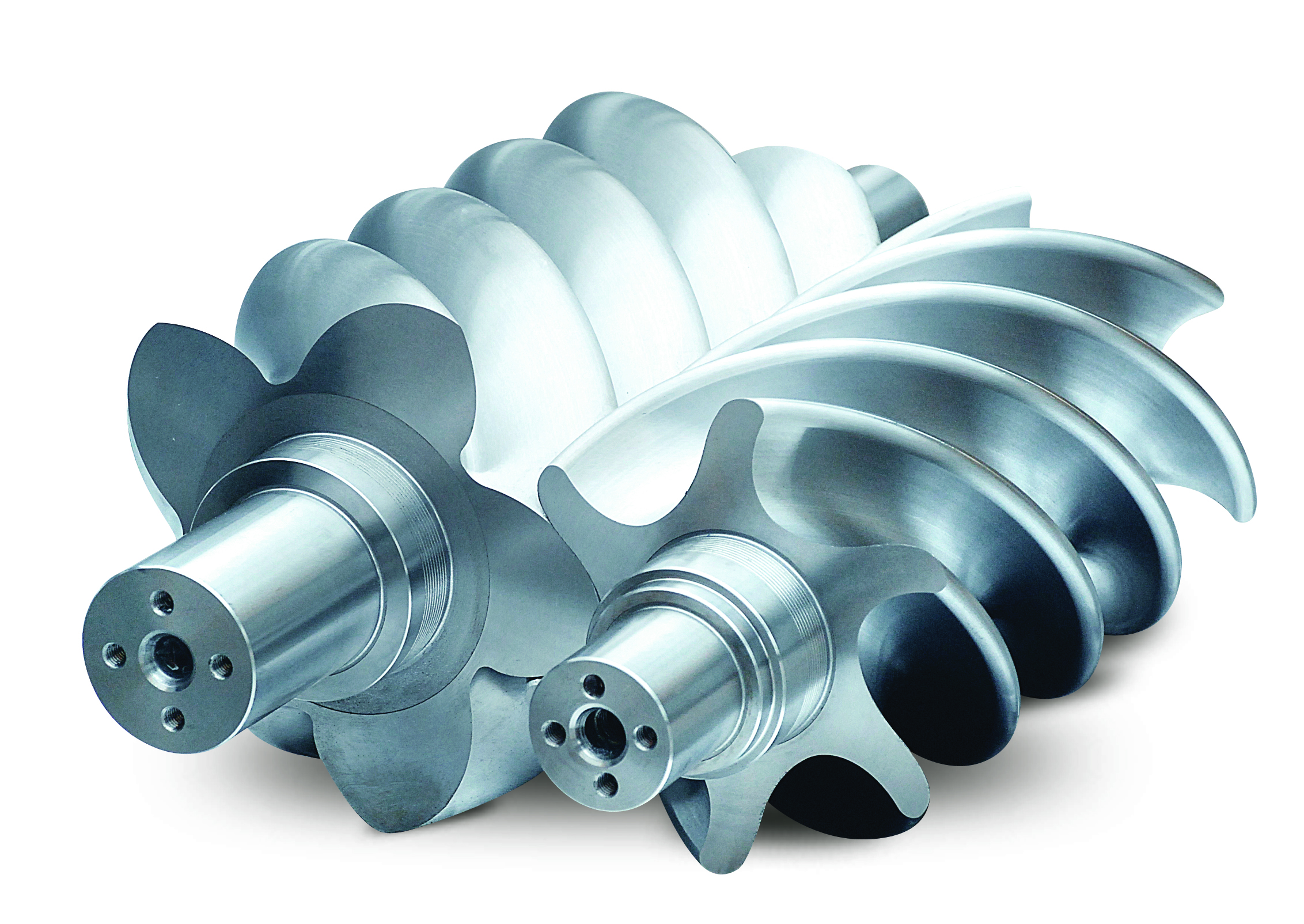

RELIABLE AIR END

Larger Rotor Size: To increase the rotor throughput, the Airends of our Compressors are larger than usual. Our Air Compressors are built with 5/6 lobes and larger rotor size which reduces the specific power Consumption and runs in slow speed.

Lower inter-lobe leakage losses: Pressure differences between two neighboring working chambers is small due to a greater number of lobes. This reduces inter-lobe leakage losses. Hence leakage to delivery ratio decreases as the number of rotor lobes increases.

Larger wrap angle & discharge port: A greater number of lobes combined with a larger wrap angle ensures multiple rotor contact. This reduces vibrations and thus minimizes noise. Larger discharge ports decrease the discharge velocity and therefore reduce the discharge pressure losses, thereby increasing the compressor’s overall efficiency Low cost of ownership throughout life cycle
