Refrigerated Air Dryer
Kaishan India provides Air-Drying solution, with its advanced KRD range of refrigeration dryers. KRD dryers utilize Refrigeration circuit to cool the compressed air and condense the water formed in the compressed air during cooling process. KRD dryers make certain that the dew point would be of low and stable level under tropical ambient Indian conditions. outlet air quality meet the needs of everyone, especially the most extreme industrial application.
Precise Control: The refrigerant circuit of the KRD dryer has been engineered to provide an exact 3-7ºC dew point performance under varied
Air loads (full load and partial load) and under varying ambient conditions (seasonal change and location change).
Designed for Asian Conditions: KRD dryers have been designed for tropical Asian conditions.
High Operating Limits: KRD dryers can operate in very challenging conditions to an inlet air temperature of 70ºC and up to 50ºC ambient
temperature.

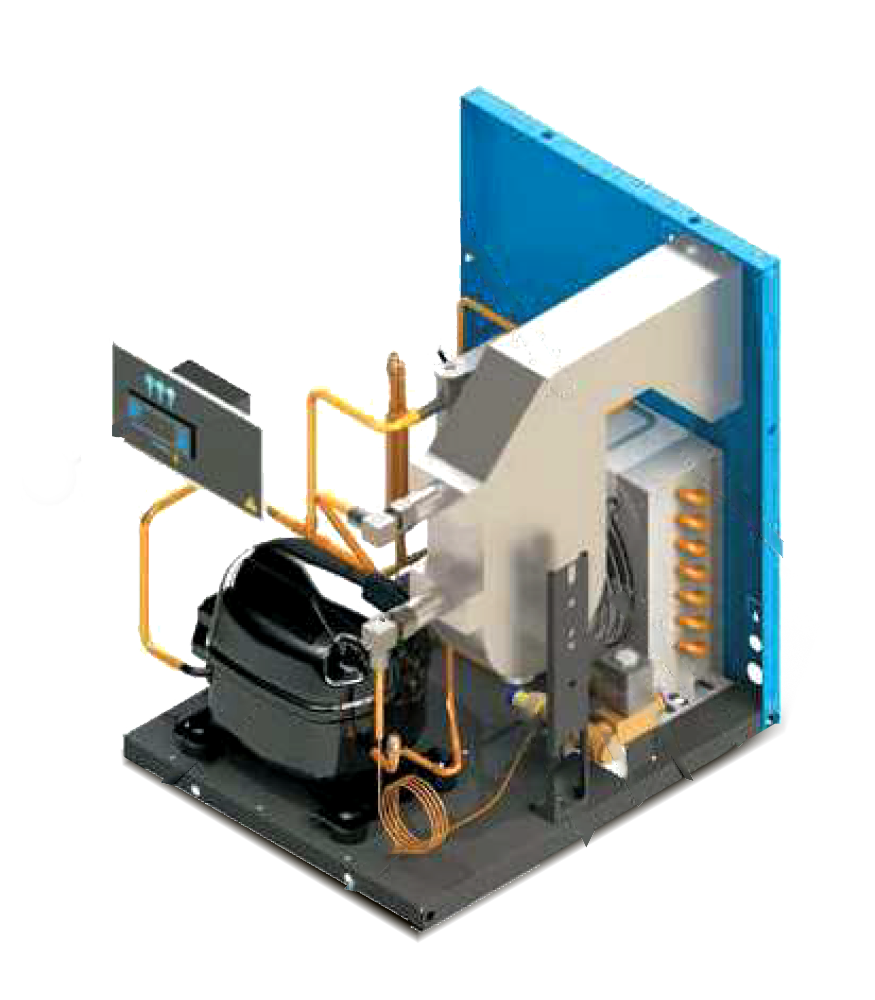

The ultra-compact heat exchanger is the core component of Kaishan India refrigeration air dryers, crafted from durable aluminum and designed to handle multiple stages of compressed air treatment. In the air/air exchanger section, incoming air is pre-cooled while outgoing air is post-heated. This innovative process reduces energy consumption in the chiller circuit and minimizes the risk of condensate forming on the outlet pipe’s surface. Unlike standard designs, the heat exchanger incorporates a flow mixing chamber at the air/air exchanger outlet. This chamber ensures uniform air temperature before entering the evaporator channels, optimizing heat exchange efficiency. In the evaporator, cooled air passes through a demister separator, which efficiently removes condensate into a large collection chamber, while maintaining low pressure drop through its carefully engineered design.
Refrigerated Air Dryer Features
Precision Engineering: With careful and detailed design and engineering, every air dryer from Kaishan is absolutely optimally designed for its application under a wide range of conditions.
High-Efficiency Heat Exchangers: Our special heat exchangers operate with a greater thermal efficiency than other air dryers and, therefore, use much less energy.
Smart Control Systems: Kaishan air dryers are offered with intelligent control systems featuring autonomous operation, real-time monitoring, and adjustability based on needs.
Environmentally Friendly Refrigerants: As a responsible enterprise, Kaishan air dryers use eco friendly refrigerants that do not affect efficiency but minimize environmental effects.
Air cooled dryers available up to 7000 cfm.
Benefits
Kaishan Dryers boast the smallest footprint in its class, making it ideal for tight spaces.
Reduced energy consumption due to efficient selection of components and electronic controls.
Lowest pressure drop in its category; thanks to the heat exchanger made of aluminium with a mixing chamber that allows the air mixing and thus increasing the exchanger yield while reducing the pressure drop at a minimum.
Stable dew point maintained under normal conditions of use; thanks to the work carried out simultaneously by both the electronic board and heat exchanger with high efficiency.
