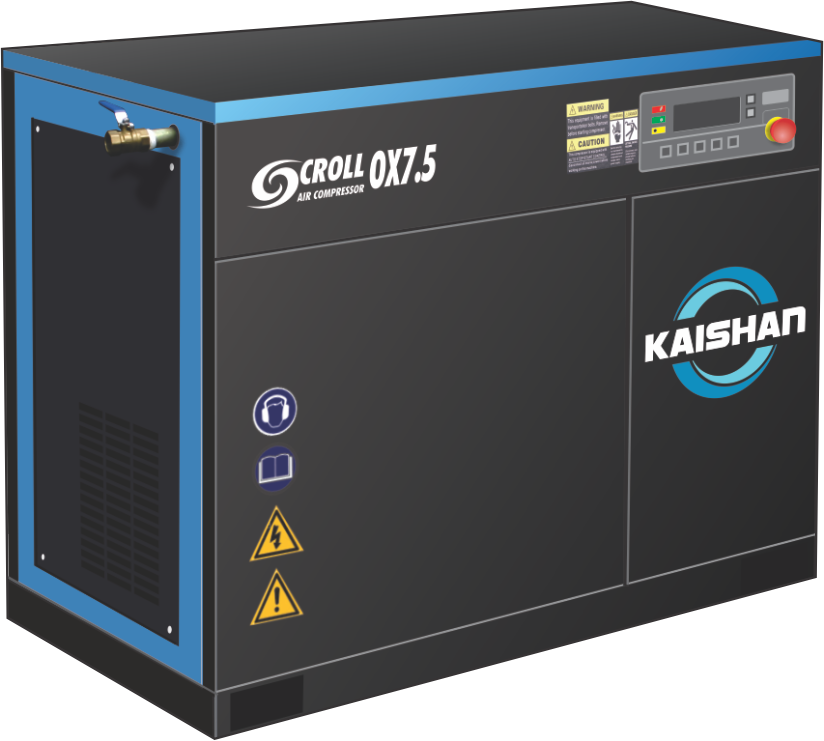

Scroll Compressor
Kaishan has successfully leveraged scroll technology to revolutionize the development of small displacement air compressors, culminating from nearly a decade of manufacturing expertise and technological advancements. This breakthrough has comprehensively enhanced the competitive edge of our small displacement air compressors.
Scroll compressor has the advantages of both piston machine and screw machine. With the development of machining technology, its profile processing is much simpler than the three-dimensional profile processing of screw rotor, which reduces the processing cost. Moreover, the scroll air compressor has stable operation, high reliability, no vulnerable parts and low operation and maintenance cost. It can give full play to the advantages of
the scroll compressor and meet the requirements of modern industry for high efficiency and energy saving.
The application of scroll compressor in the range of 0.5m3/min-3m3/min has gradually become the mainstream model.

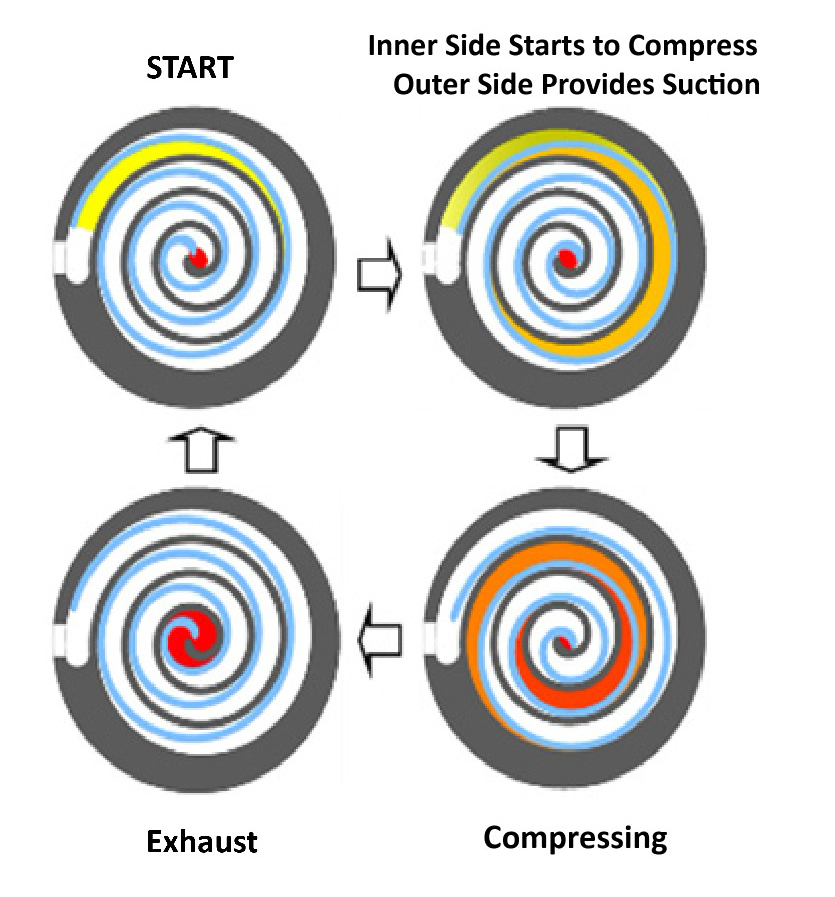

working principle：
The low-pressure air enters the working chamber from the suction port opened on the static vortex disk. As the moving vortex disk rotates in a plane with a small radius around the center of the static vortex disk, the working chamber expands or shrinks accordingly, and the compressed air is finally discharged from the exhaust port at the center of the static vortex disk.

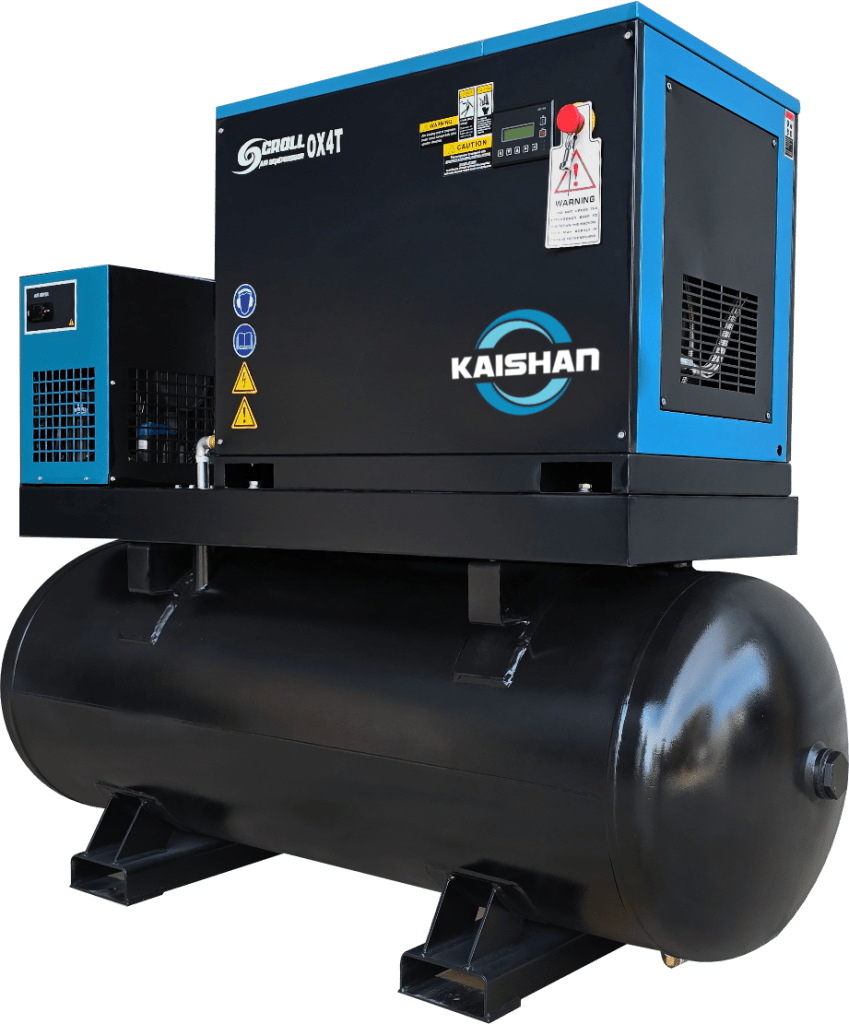

Tank Mounted Scroll Compressor features
Simple structure, small volume and light weight.
Small force change of moving parts, stable operation, small vibration and low noise.
Few moving parts, reliable and durable.
The volumetric efficiency is 98%, the thermal insulation efficiency and mechanical efficiency are high.
Maximum energy efficiency
100% continuous duty rated
Direct drive for zero transmission loss
Ultra quiet operating performance
Integral after cooler for high quality air
Digital control panel
Minimal floor space
Low maintenance costs
